OPzV Series
KOJEAN OPZV series Valve Regulated Tubular Plate GEL(Tubular GEL) Batteries use fumed gelled electrolyte to replace the sulfuric acid electrolyte of traditional lead-acid battery to form colloidal medium and then solidify, It not only keeps excellent conductivity, but also totally eliminates the leakage and volatilization of electrolyte, so as to prolong the service life of the battery and reduce the maintenance cost.By using diecasted positive grid and patented active material formula, performance meet or even exceed the standards specified in DIN, with long design life up to 20~25 years in floating service and high deep cycling capabilities. It is recommended for cyclic use under extreme operating conditions.
Features
1)Extremely high cycle life.
2)Wide protected operation temperature ranges of -40℃ to 55℃.
3)High quality tubular positive plates and immobilized gel, which give the battery high reliability and stable performance.
4)Unique heat sealing and TTP welding technology, the battery has excellent deep cycle performance in maintenance-free, therefore, the battery has the strength of high cost performance and low annual operating cost.
5)Easy to be moved and handled, and it has PVC separator, which is special for gel battery with tiny holes.
6)Low self-discharge, keep over 60% of the rated capacity after 2 years stored under 20°C.
Applications
Deep cycling energy storage application, Solar& wind energy storage system, Off-grid & bad-grid hybrid sites, Floating applications for telecom sites, etc.

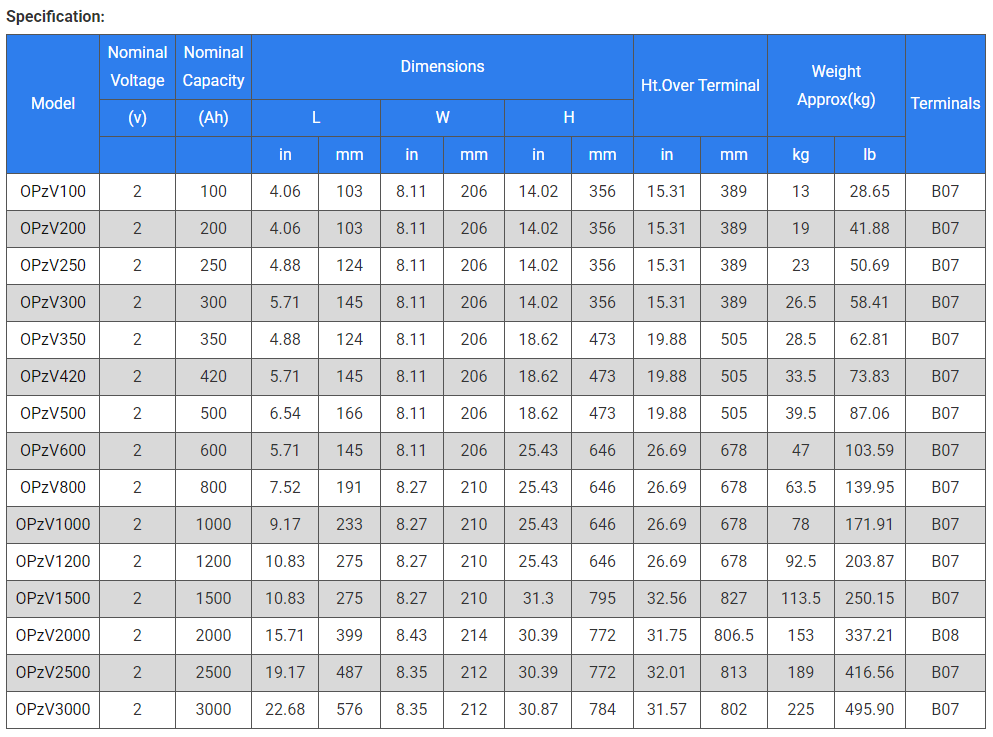

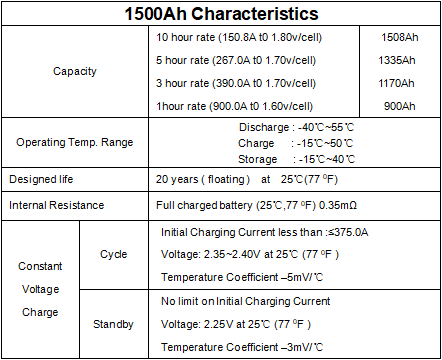

Specifications

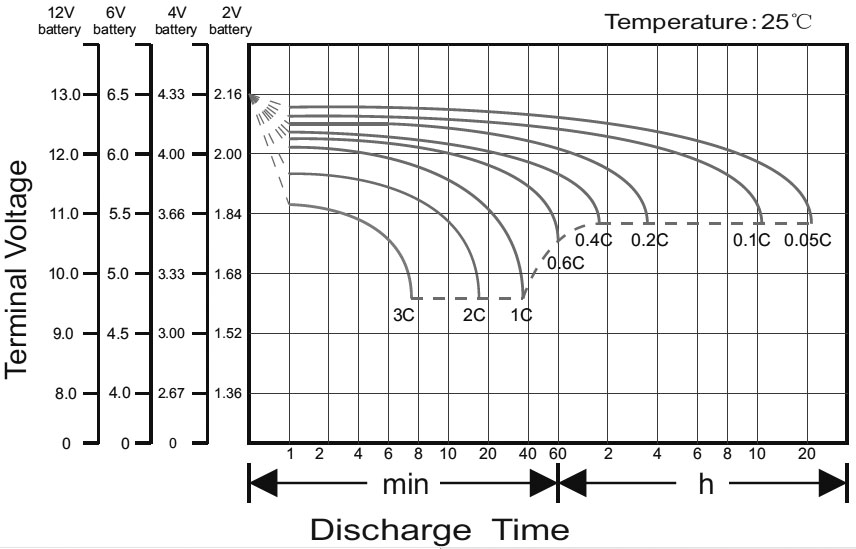

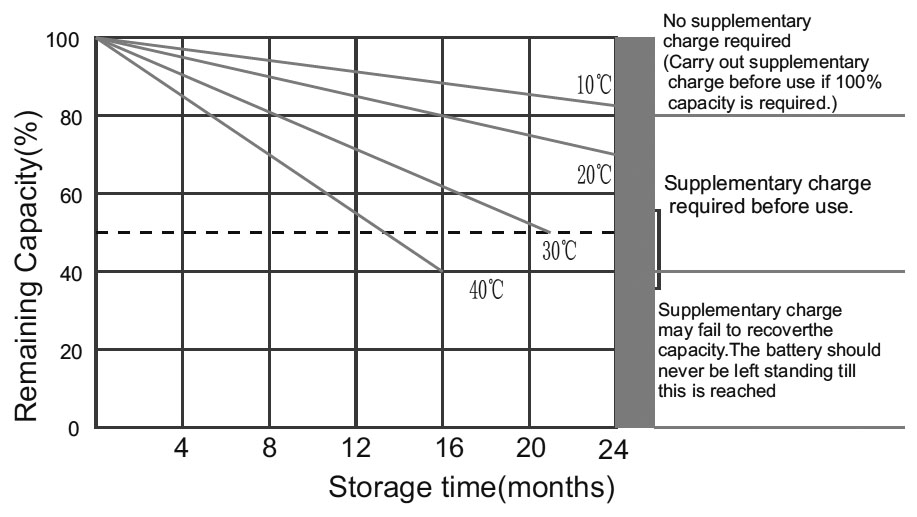

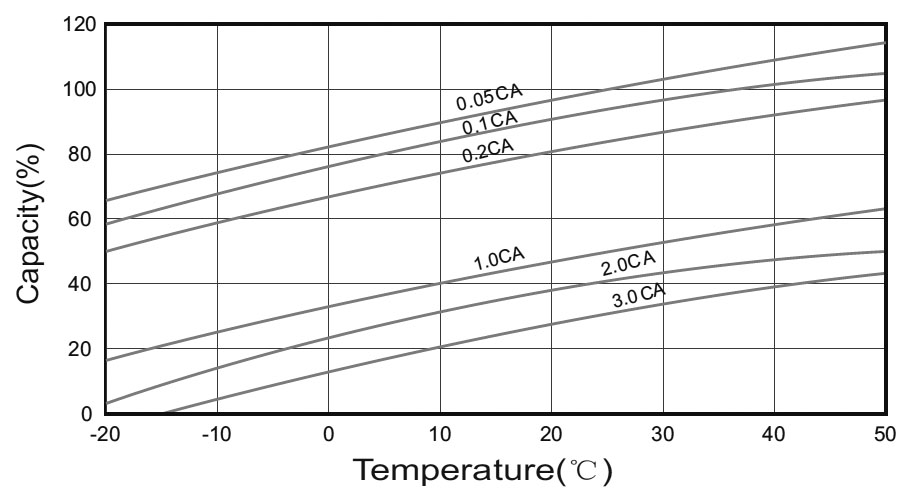

Curves
